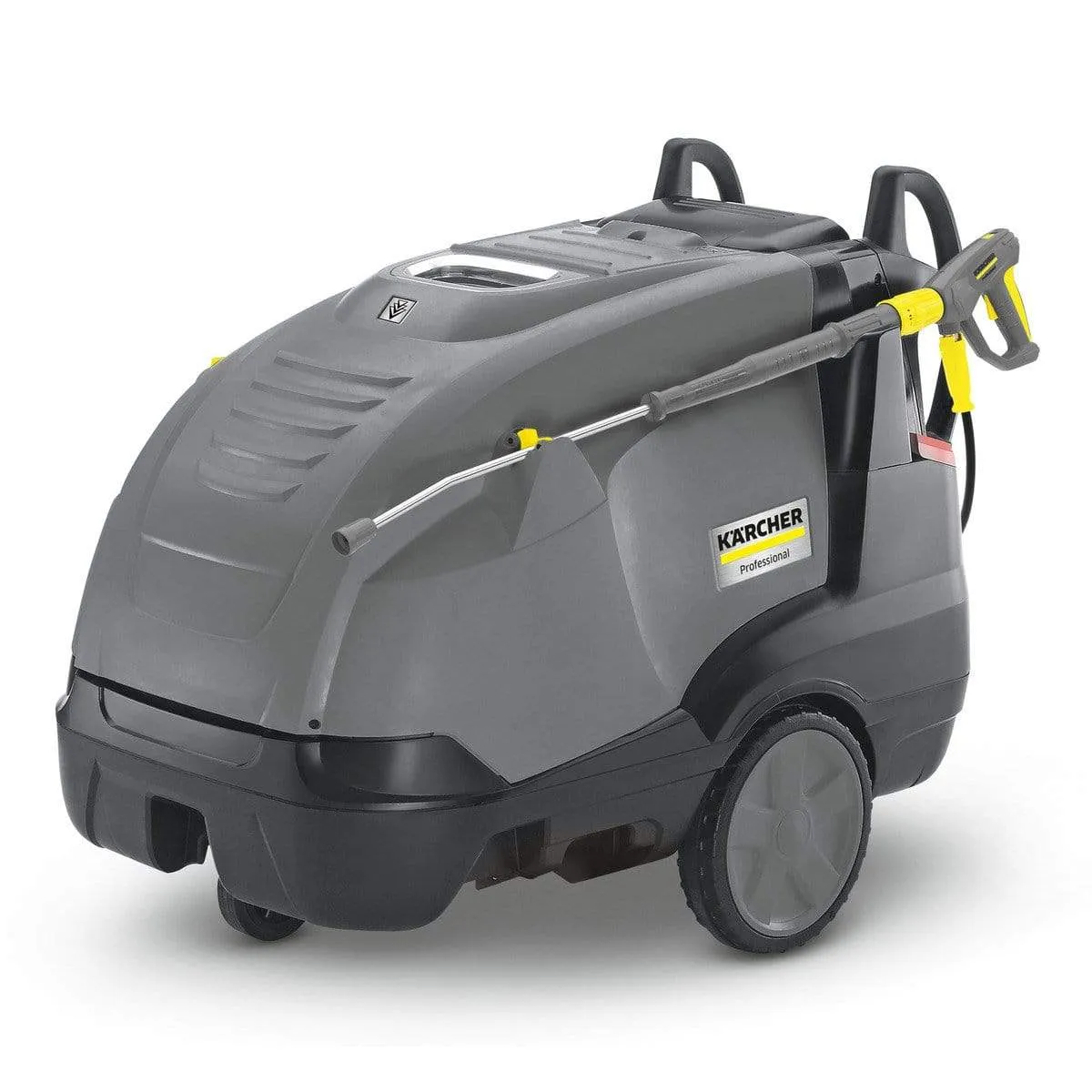

Because hot water cleans better: the HDS 9/18-4 M is a powerful hot water high-pressure cleaner with water-cooled motor. You benefit from a highly efficient cleaning performance, which is ensured by our patented nozzle technology, ceramic pistons, turbo blower and greater pump efficiency. The unique eco!efficiency mode, optimised burner engineering and other equipment features like the switch for water hardness regulation ensure just the right balance between the required cleaning performance and maximum environmental protection. You can also look forward to outstanding user-friendliness: the control panel is intuitive and ergonomic, just like the accessory storage compartments. With the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, the machine is very convenient to use.
FEATURES AND BENEFITS
Efficiency
In the eco!efficiency mode the machine operates in the most economical temperature range (60°C) – with full water flow. The burner cycles are optimised to reduce fuel consumption by 20% compared to full-load operation.Maximum efficiency
Highly efficient, tried-and-tested burner technology. Four-pole electric motor with three-piston axial pump. Water-cooled motor for a high level of performance and durability.Operational safety
The large, integrated water fine filter reliably protects the high-pressure pump against small dirt particles. The integrated exhaust gas thermostat switches off the drive motor if the emission temperature exceeds 300 °C. The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.Storage
- Safe and ample storage for protective gear, accessories and cleaning agents.
- Storage hooks for power cable and high-pressure hose.
Mobility concept
- "Jogger" design with large rubber-tyred wheels and steering roller.
- Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
- Effortless operation at last: the EASY!Force high-pressure gun.
- EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
SPECIFICATIONS
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 450 - 900 |
| Working pressure (bar/MPa) | 30 - 180 / 3 - 18 |
| Temperature (for supply 12 °C) (°C) | min. 80 - max. 155 |
| Connected load (kW) | 6,4 |
| Consumption of heating oil or gas at full load (kg/h) | 5,8 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 152,9 |
| Weight incl. packaging (kg) | 164,9 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
Equipment
- Cleaning agent function, 20 10 l tank
- Spray gun, EASY!Force Advanced
- High-pressure hose, 10 m, Longlife
- Spray lance, 1050 mm
- Power nozzle
- ANTI!Twist
- Tanks for cleaning agent, calcification protection and fuel can be filled from the outside
- Control panel with display light
- Pressure switch-off
- Pole reverse plug (3-phase)
- Service electronics with LED display
- 2 cleaning agent tanks
- Dry-running protection
