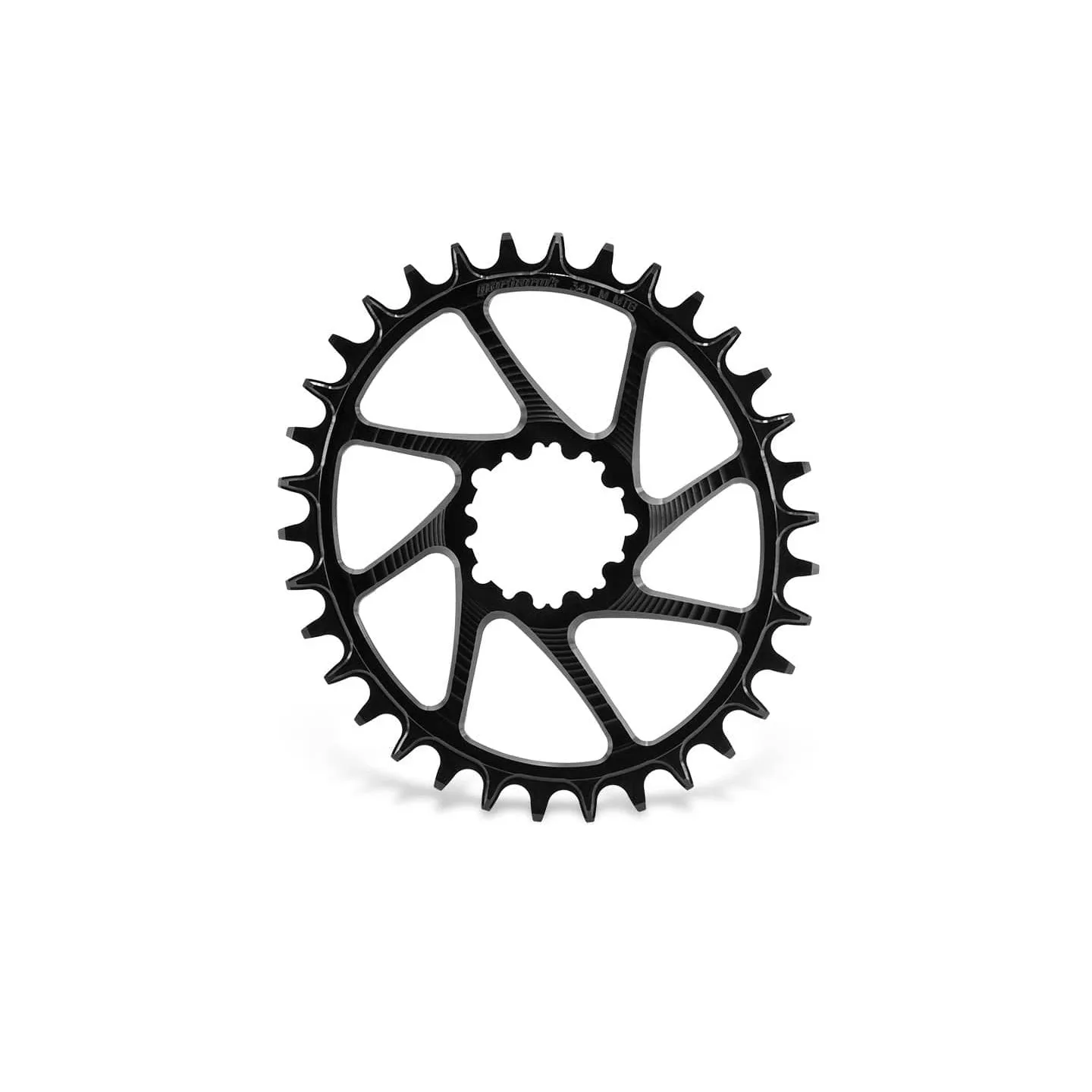

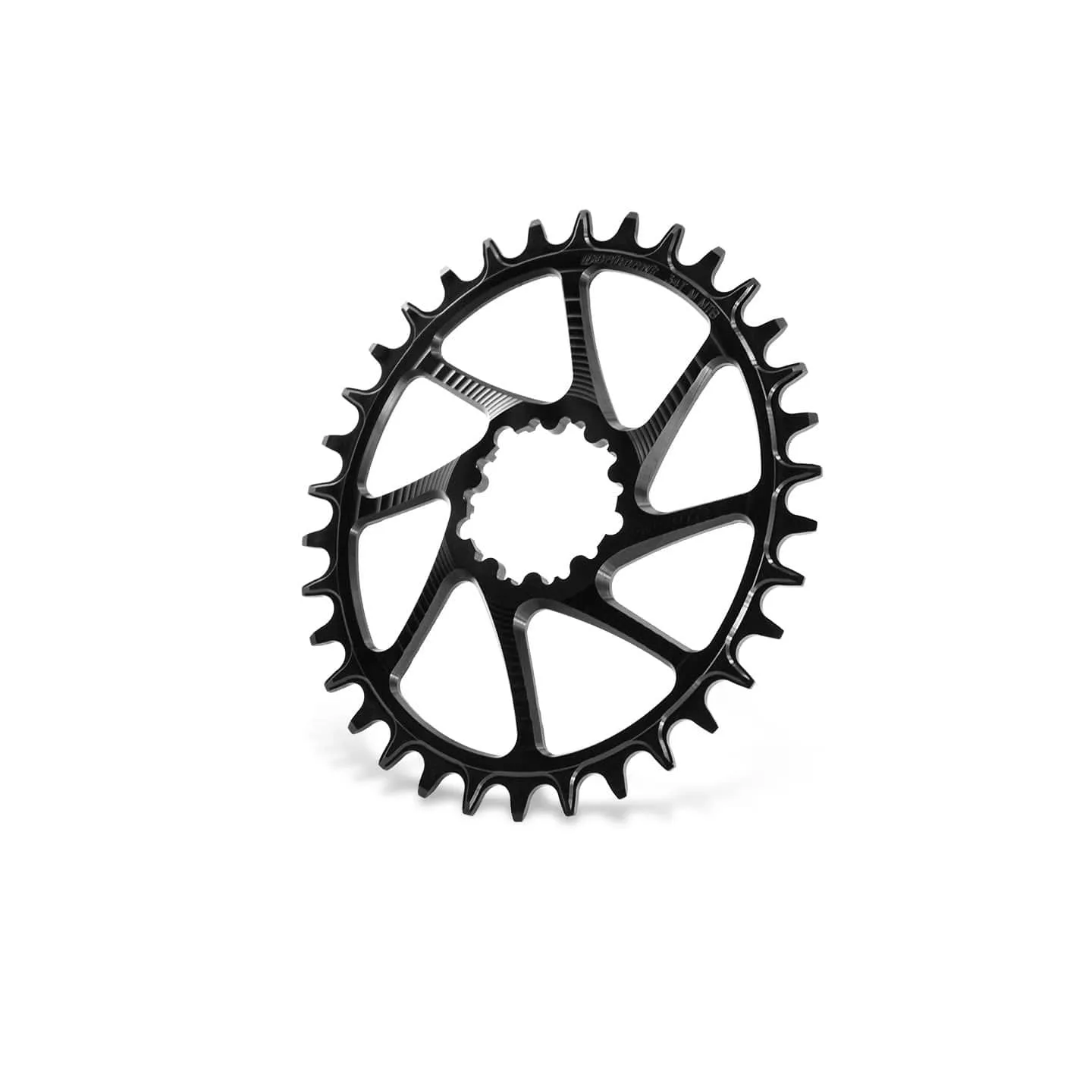

GARBARUK Oval MTB chainring for SRAM X9, X1, NX, GX, X0, X01, XX1, X01 Eagle, XX1 Eagle and also Cane Creek eeWings Mountain cranksets.

• Special tooth shape guarantees a tighter contact with chain and softer pedaling (in comparison with regular chainrings)
• Chamfered edges and wide mud gap keeps the ring from getting muddy
• Increased tooth height improves chain retention while the bike is shivering and jolting
• Overall bicycle weight reduction in the range of 150-400 grams (with no front derailleur and chainguide)
• Manufactured using highly durable aluminum alloy
• Variable teeth thickness prevents chain dropping

OVAL CHAINRING ADVANTAGES

• Even at-the-wheel distribution of pedaling torque
• Improved responsiveness and pedaling smoothness, narrower dead spots and increased span of your gluteus and hamstrings
• Easier uphill riding, especially on soft and slippery terrains
• Increased pedaling efficiency

Specifications
Made from 7075-T651 Aluminum Alloy
Surface coating Anodizing
Made with CNC milling
Ovality 12%
Timing 108° after TDC (top dead center)
Compatible cranksets SRAM X9, X1, NX, GX, X0, X01, XX1, X01 Eagle, XX1 Eagle. Cane Creek eeWings Mountain
Chainline, mm 47.5 (26-28T), 47.7 (30T), 48.7 (32T), 50.3 (34T), 51.8 (36T), 52.8 (38T), 53.8 (40T)
Offset, mm 7.5 (26T-28T), 6.7 (30T), 6.3 (32T), 4.6 (34T), 3.2 (36T), 2.2 (38T), 1.2 (40T)
Chain compatibility all 9,10,11-speed chains, 12-speed SRAM Eagle, KMC, Shimano HG chains.

Mfr Claimed Weight
56g (32t)
