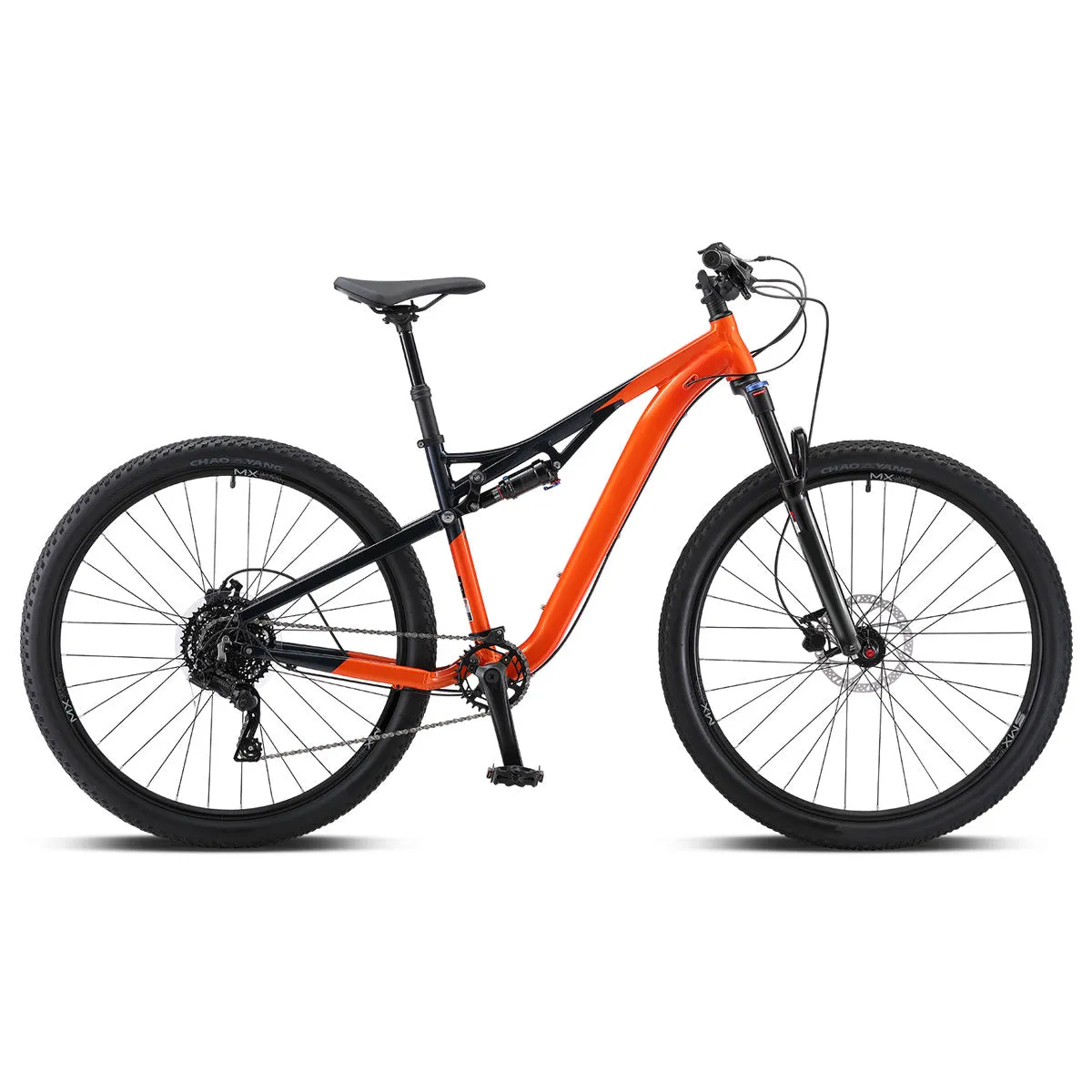

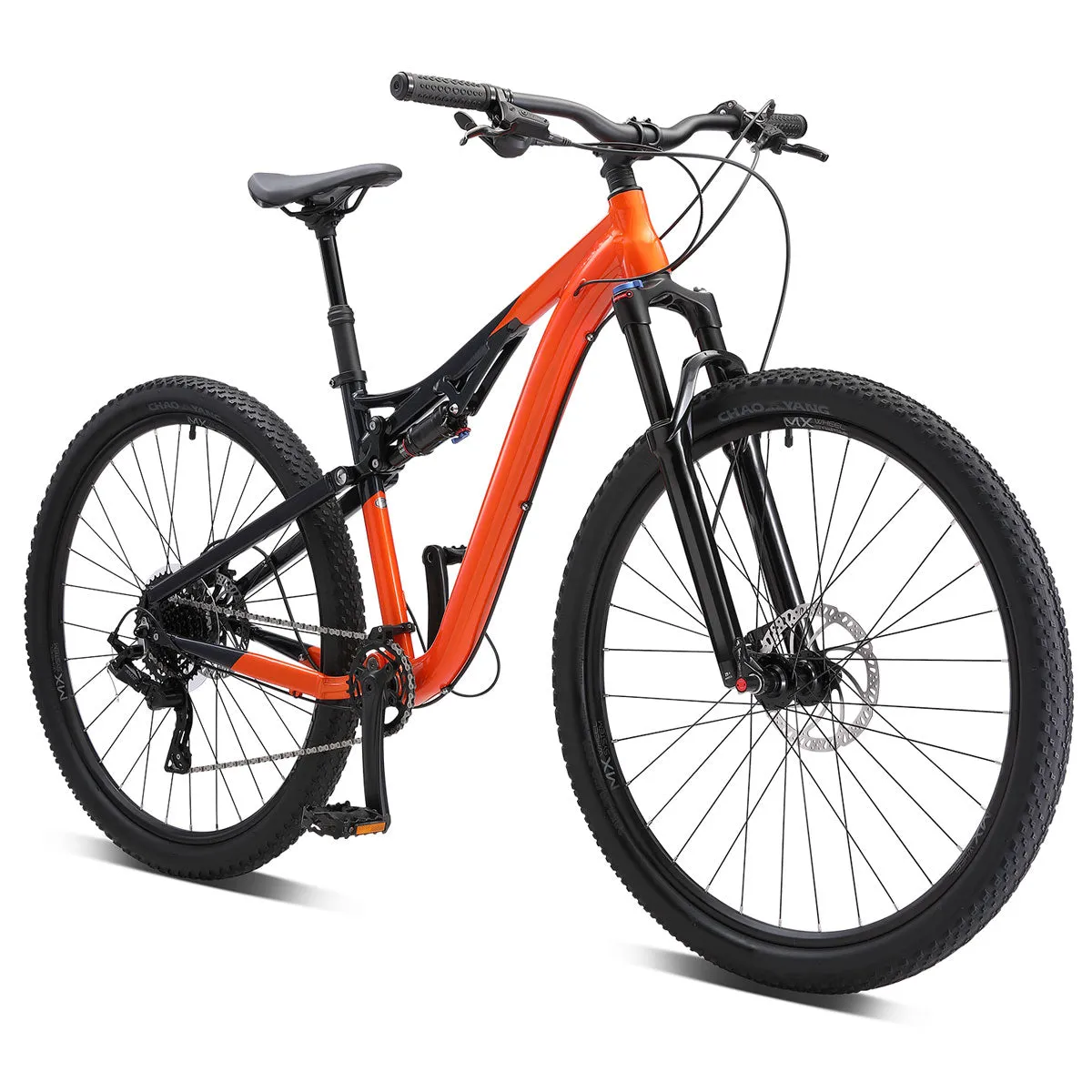

The Bike for Everywhere

Take the edge off rough trails, and ride in comfort with a full suspension set-up with the Trail Mountain Bike.

Dual Suspension

Fitted with front and rear suspension, our dual suspension set-up allows you to experience the highest levels of comfort and control to tackle even the most rugged and toughest terrain. Absorb bumps from front and rear wheels with ease while keeping you in close contact and control on the ground for the tricky terrains.

Lightweight 6061 Alloy Frame

Experience less drag on or off the road with a lightweight but durable alloy frame.

9-Speed Drivetrain

Maintain cadence and find the right gear ratio for any incline with the (1x9) 9-Speed Drivetrain.

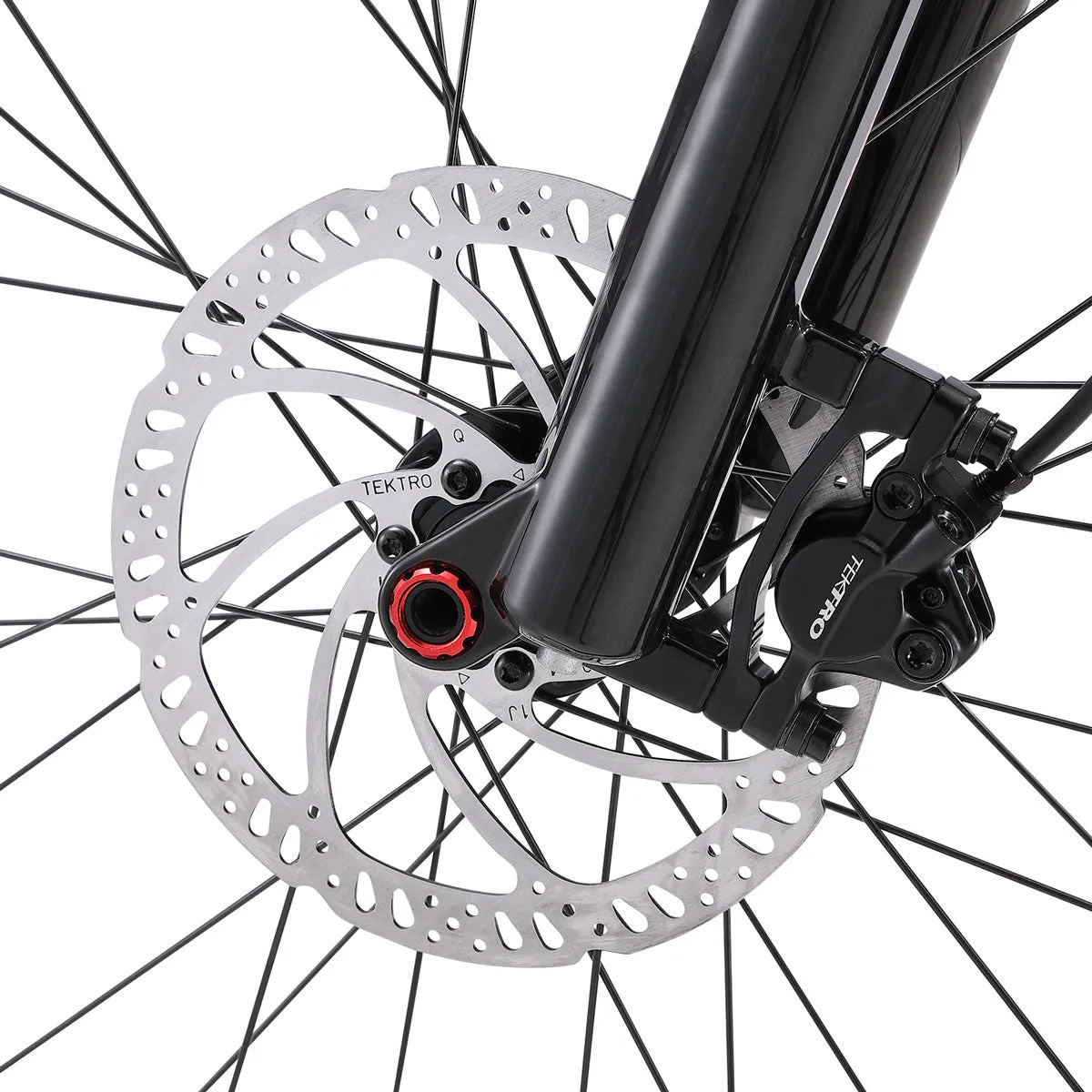

Tektro Hydraulic Disc Brakes

Experience a smooth and comfortable stop with Front and Rear Hydraulic disc brakes. These brakes are simple, reliable and easy to maintain.

100mm Dropper Seat Post

Add versatility, confidence and speed to your off-road manoeuvres with the remote controlled 100mm Dropper Seat Post. Control your seat post height with easy to use cable actuation and hydraulic internals.

Specification

Technical Specifications

Frame Size	17", 19", 21"
Frame	X6 6061 Alloy
Fork	140mm w M15 thru axles

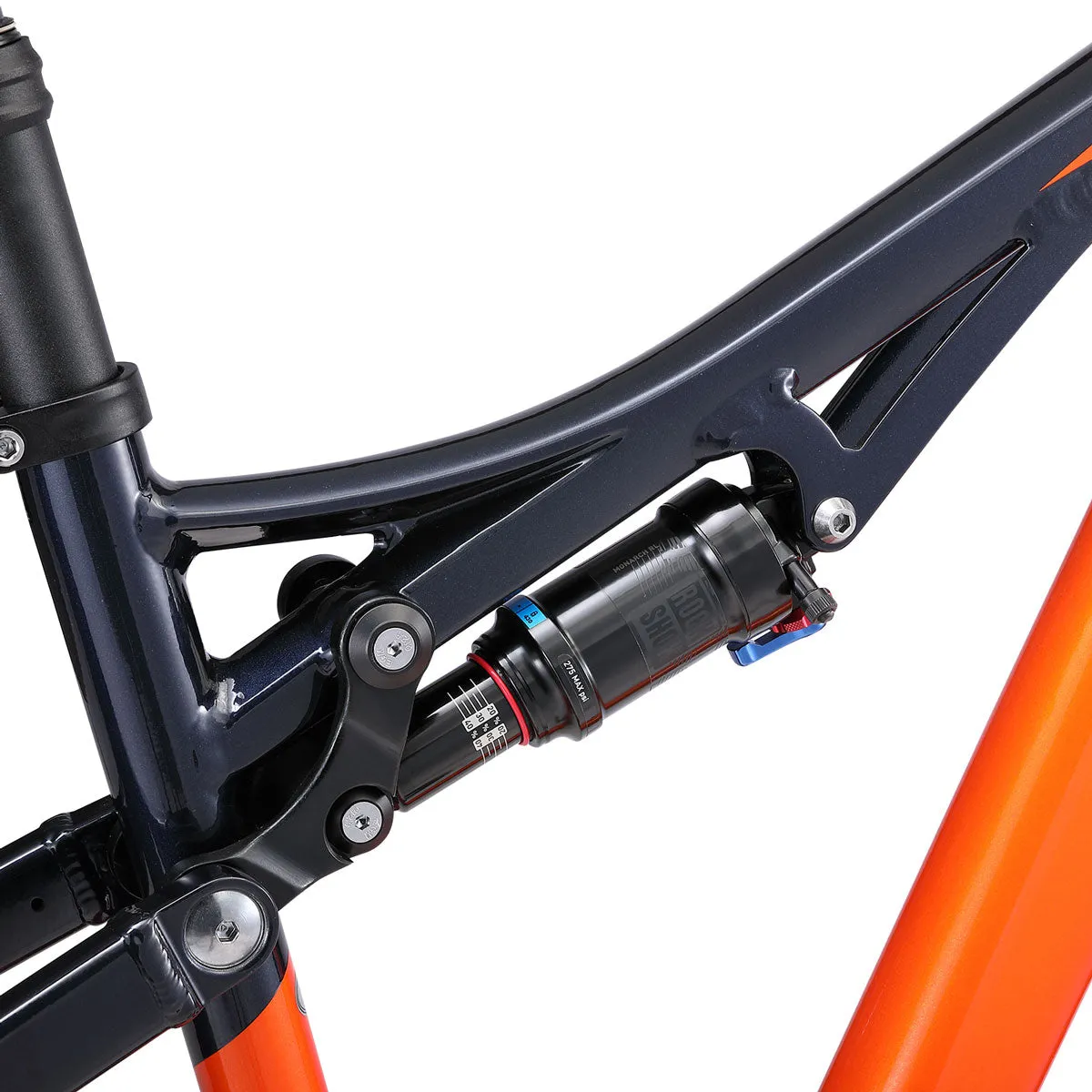

Rear Shock	Rock Shox Monarch RL-C2 165 x 38
Handlebar	Alloy 31.8 750mm wide
Grip	MTB Rubber
Stem	Alloy 45mm
Seatpost	Alloy 31.6 x 410mm 100mm travel Dropper
Seat Clamp	Alloy with Quick Release
Saddle	MTB Saddle
Left Gear Shifter	N/A
Right Gear Shifter	microSHIFT Advent 9 Speed Sl-M819-R
Front Derailleur	N/A
Rear Derailleur	microSHIFT Advent RD-M6195M 9 Speed
Front Brake	Tektro M290 Hydraulic disc with 180mm rotor

Rear Brake	Tektro M290 Hydraulic disc with 160mm rotor
Freewheel	Microshift CS-H093 11-42t 9 Speed
Pedal	MTB Plastic with bearings

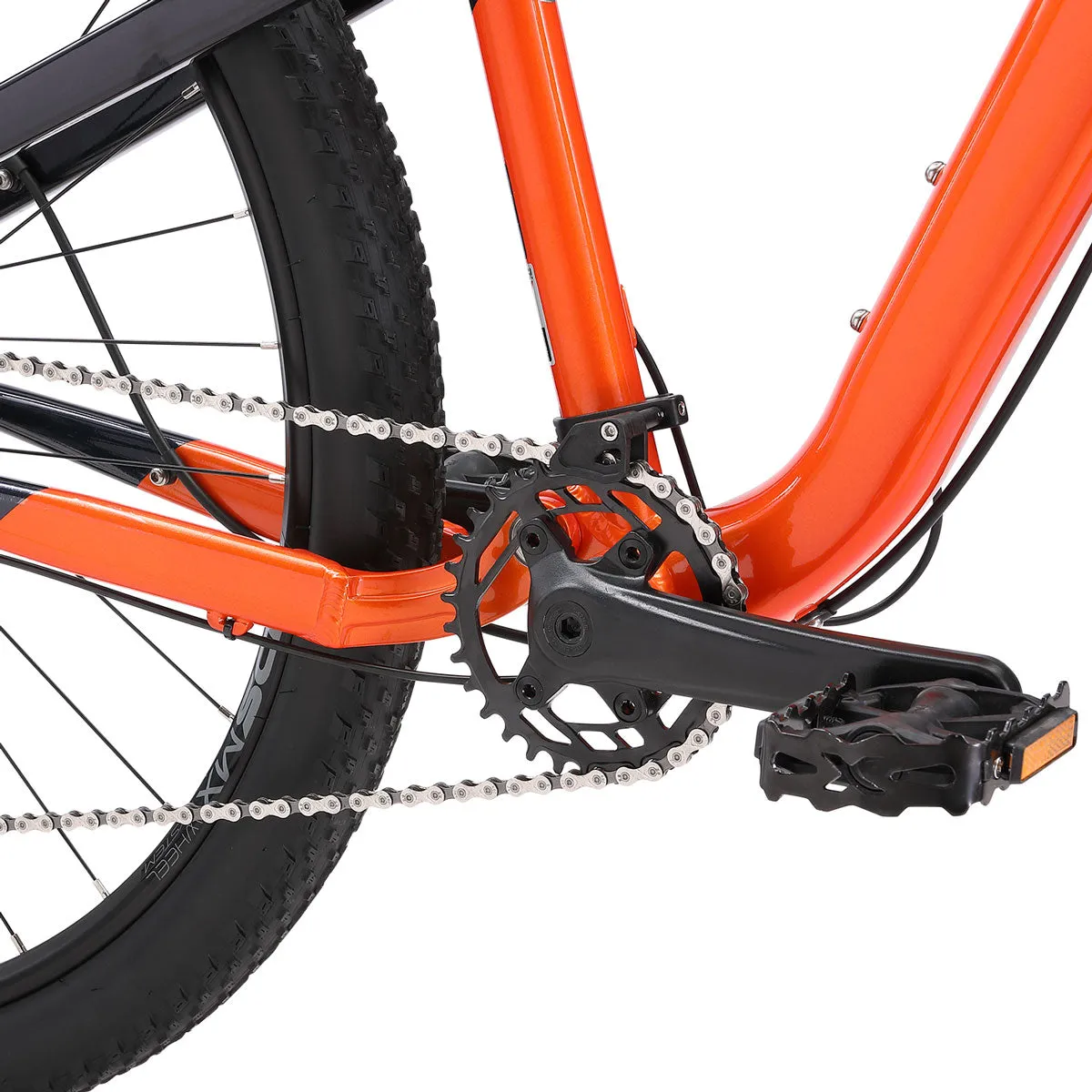

Chainwheel	Charm FD04S 32T
Crank Arm	Alloy 165mm/15" - 170mm/ 17, 19 and 21"
Chain	1/2 x 11/128 x 114L
Bottom Bracket	Cartridge
Headset	Alloy integrated
Front Hub	Alloy 32H with 15mm Boost Quick Release Disc
Rear Hub	Alloy 32H Quick Release, Disc, Freehub
Spokes	14G Stainless Steel with brass nipples
Tyre	MTB 29 x 2.25 60TPI
Rim	X-SX19 32H Alloy
Bell	Alloy flick

Bike Size Guide

Frame Size Number	15"	17"	19"	21"
Wheel Size	29"	29"	29"	29"
Suggested Height	160-170	170-180	180-190	190-200
Minimum Suggested Inseam	77cm	78cm	80cm	85cm
A - Seat Tube	38.1cm	43.2cm	48.3cm	53.3cm
B - Seat Tube Angle	74.6°	74.6°	74.6°	74.6°
C - Head Tube Length	11cm	11cm	12cm	13cm
D - Effective Top Tube	57.6cm	57.6cm	59.5cm	61.5cm
E - Chainstay Length	47cm	47cm	47cm	47cm
F - Wheelbase	114.5cm	114.5cm	116.5cm	118.6cm
G - Standover	75.7cm	76cm	78.8cm	83cm
