At a fraction of the cost of other home fitness equipment or a yearly gym membership, you can have the luxury of working out in your home whenever you choose…and get a great workout to boot.

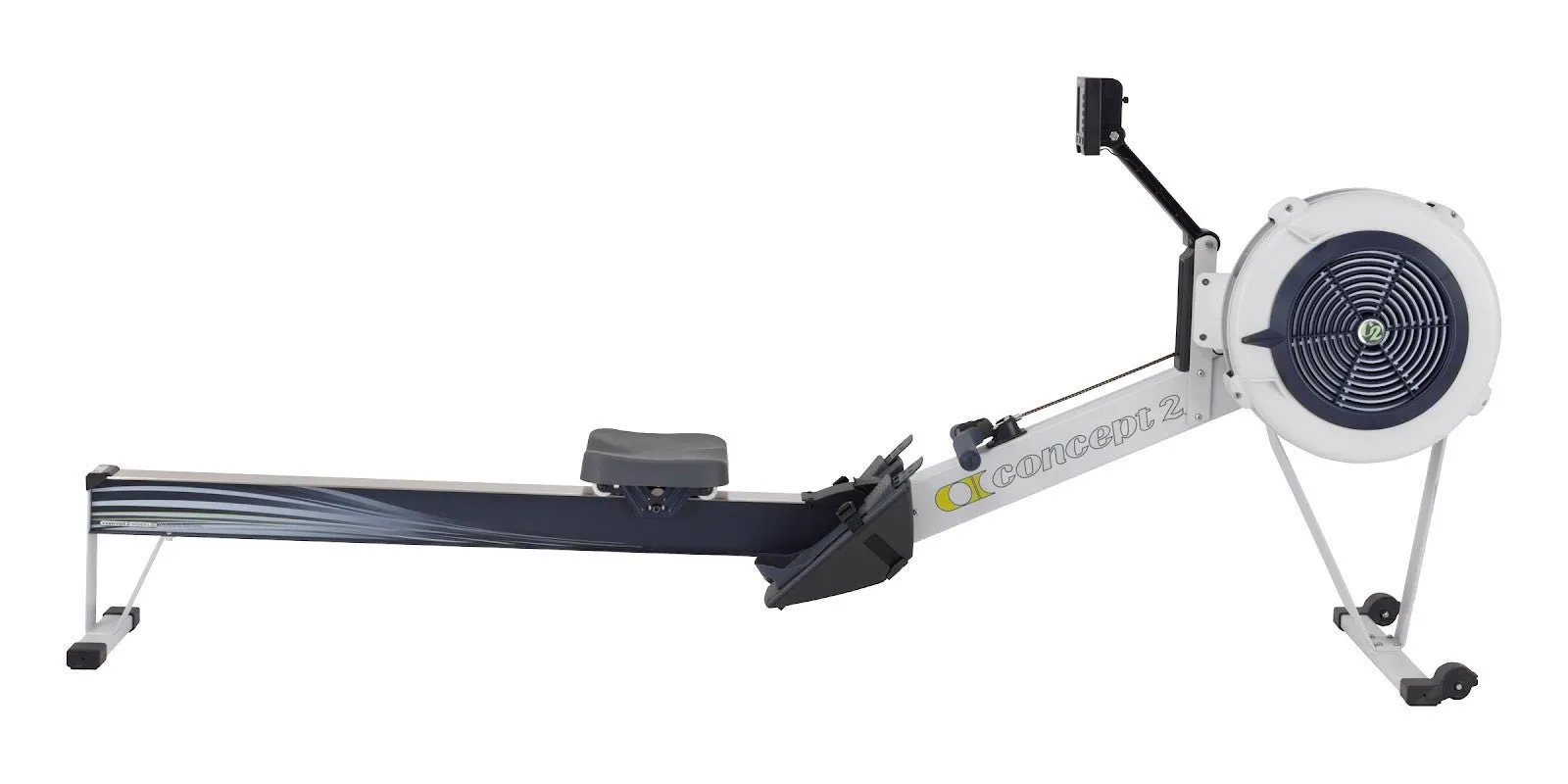

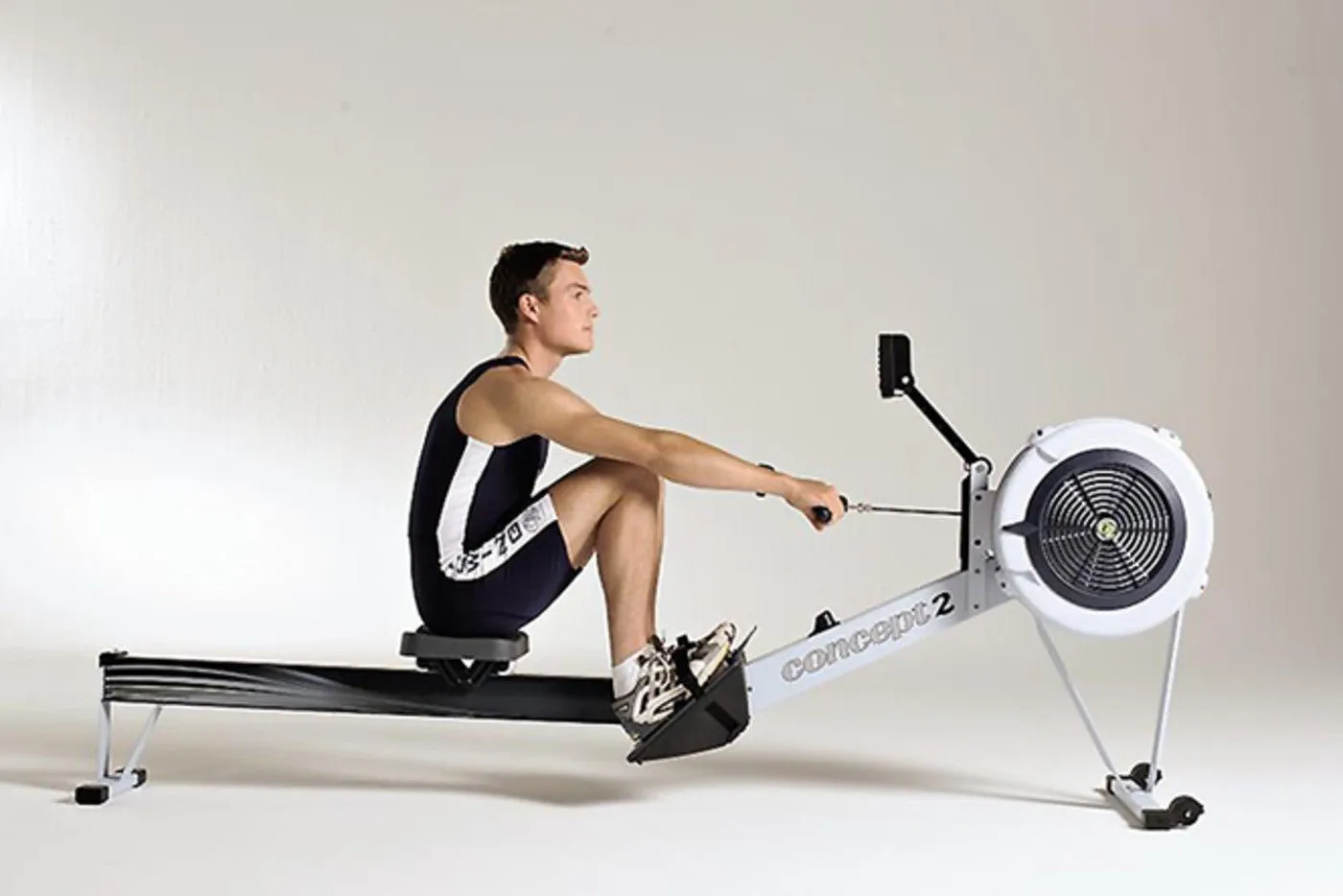

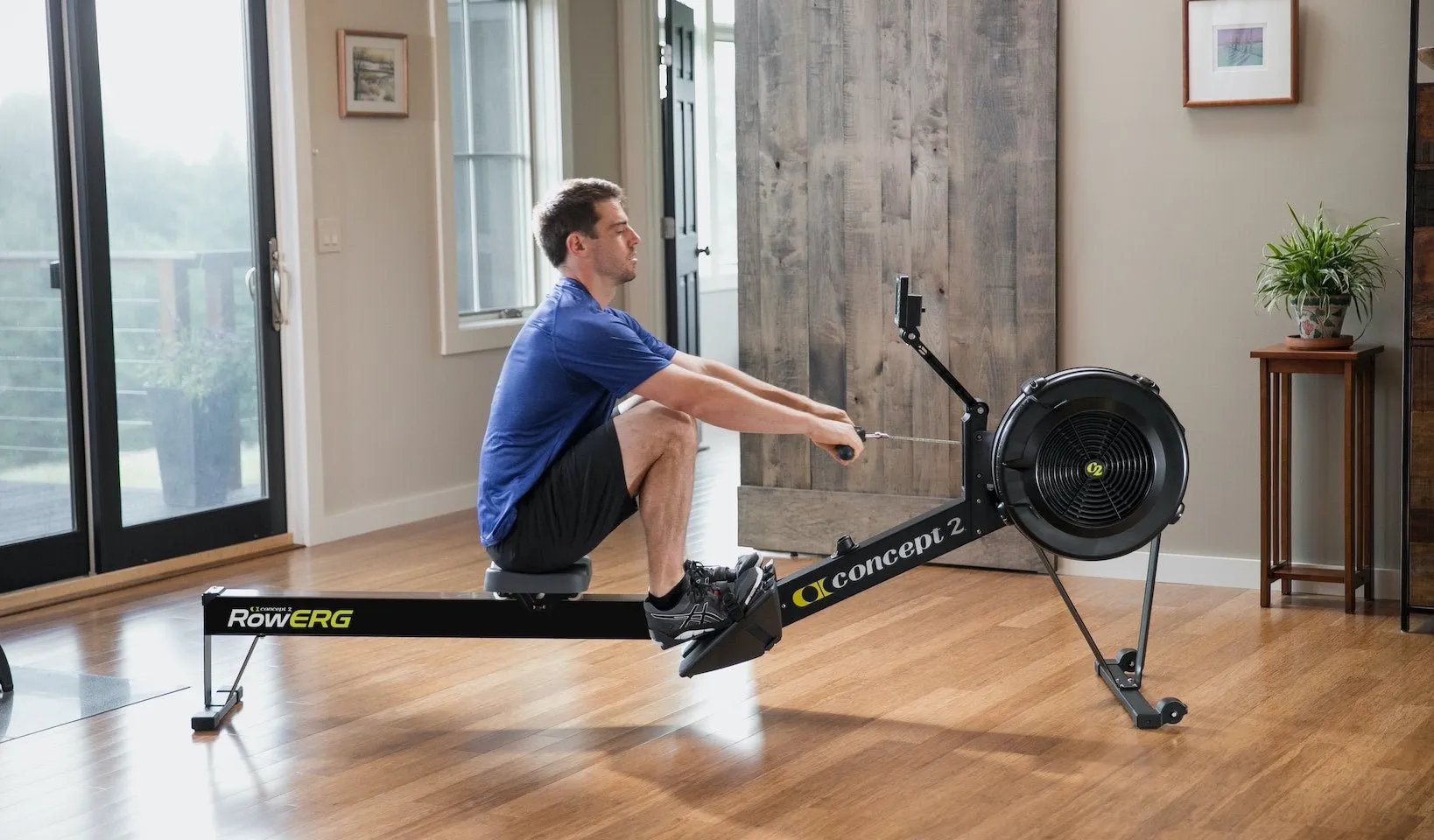

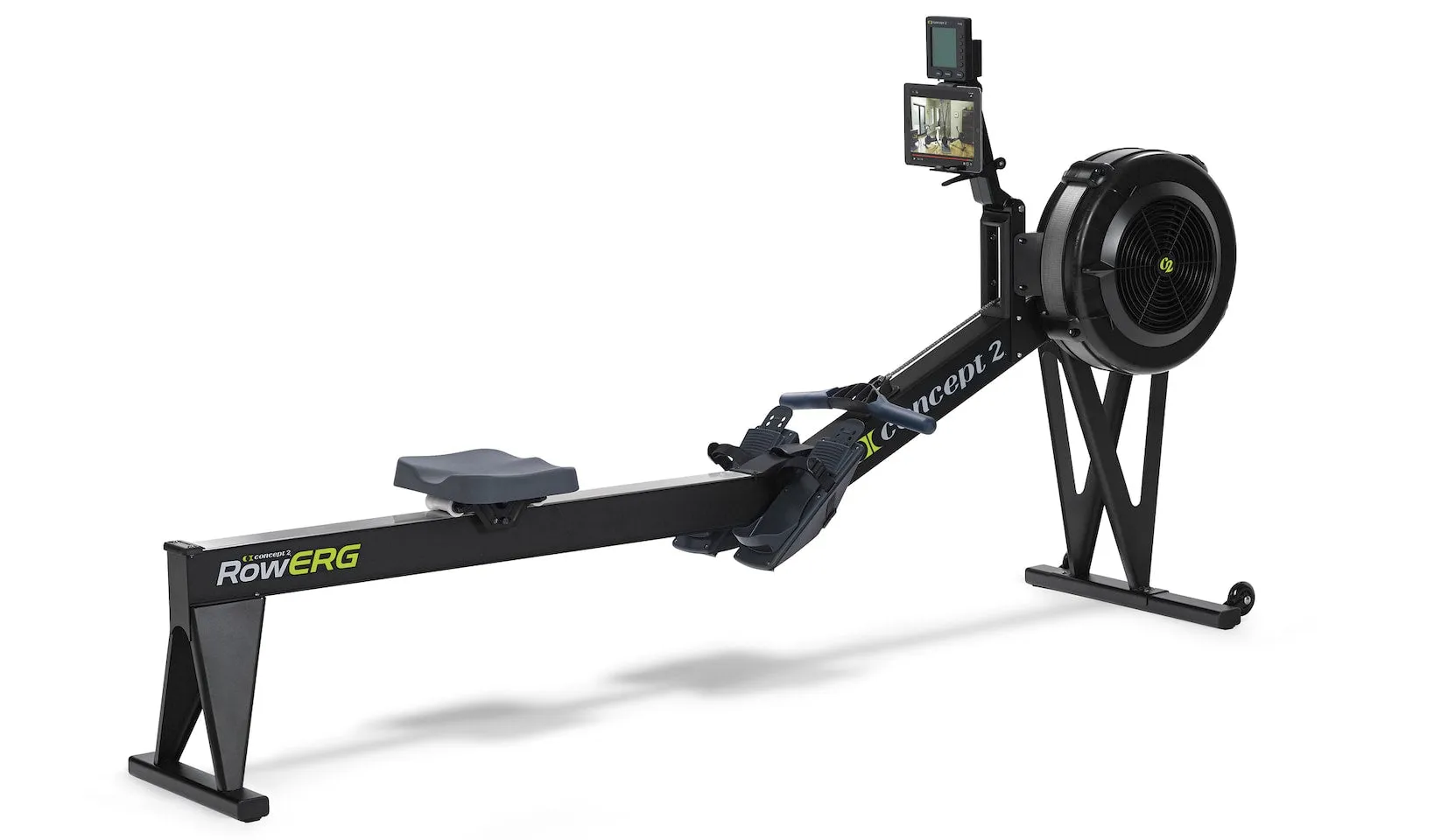

We value practical design: our Model D is efficiently engineered and will last a lifetime. The Model D you buy is the same machine used by Olympic- and elite-level athletes to train for their sport—it’ll take the abuse of heavy training day after day. If you’re looking for a solid piece of exercise equipment at a great value, the Model D is the perfect choice.

The Model D is available in two colors: light gray (the same as the Model E and Dynamic Indoor Rower) or black. Smartphone Cradle included.

Monitor PM5

Overall Length 96 in (244 cm) Width 24 in (61 cm)

Seat Height 14 in (36 cm) Monorail Length 54 in (137 cm)

Chain or Cord Nickel-plated steel chain

Chain/Cord Housing Partially enclosed

Power Generation for PM Takes two D cell batteries. During your workout, the monitor draws power from the spinning flywheel to extend battery life.

Maximum User Weight 500 lb (227 kg)

Support Legs Aluminum front legs, steel rear legs

Monitor Arm ABS plastic. Pivots for storage and to adjust monitor height. Monitor angle can also be adjusted.

Finish Powder coat

Color Scheme Light gray or black

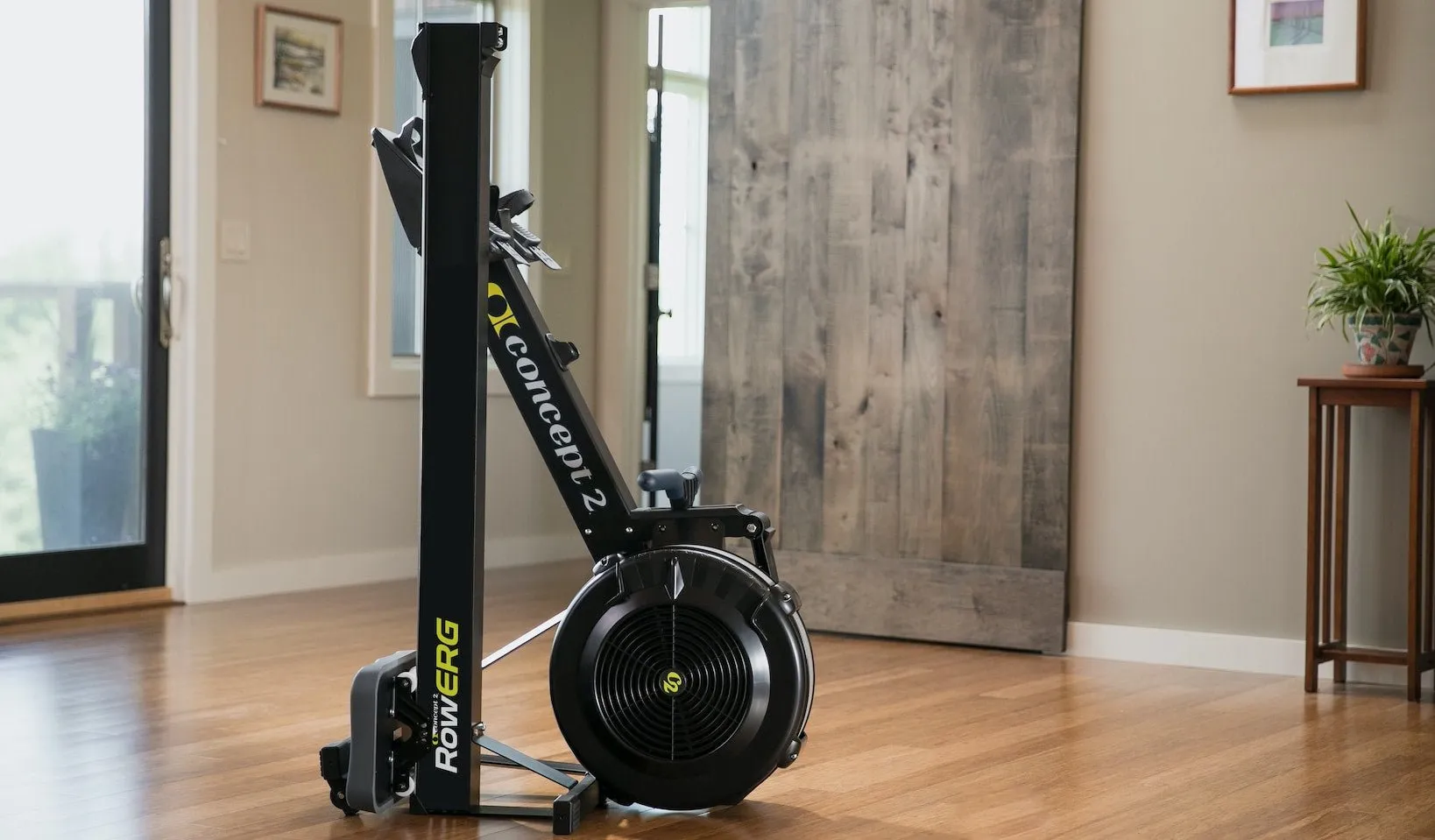

Storage Can be separated into two parts for easy storage

Space Requirements

Assembled: 8 ft x 2 ft (244 cm x 61 cm)

With Clearance for Use: 9 ft x 4 ft (274 cm x 122 cm)

For Storage: 25 in x 33 in x 54 in (63.5 cm x 83.8 cm x 137.2 cm)

Machine Weight 57 lb (26 kg)

Shipping Dimensions

One box: 15 in x 21.5 in x 56 in

Shipping Weight

70 lb (32 kg)

Warranty

Frame 5 Years

Monitor and Moving Parts 2 Years

Packed with Features, Easy to Operate

We pack a lot of functionality into the PM5, but we also make sure it’s easy to use. The monitor will power up and provide data as soon as the flywheel starts spinning, so you don’t need to push a single button to get started.

If you prefer to dive in to all the functions the monitor provides, the easy menu-driven operation lets you quickly access preset workouts, save favorite workouts, review past workout results and much more. For a full run-down, visit .

Data and Displays

The PM5 provides distance, speed, pace, calories, and watts for each workout you do, and you can choose between five display options: all data, force curve, bar chart, large print and having a paceboat/pacer.

The PM5’s backlit display provides increased visibility. It illuminates automatically when the monitor powers up and stays illuminated during your workout.

Wireless Heart Rate Monitoring

The PM5 supports ANT and Bluetooth Smart for wireless heart rate monitoring. To use this feature, you will need a chest belt that supports one of these . Please note that the PM5 supports Bluetooth Smart, not Bluetooth, which is a different technology.

USB Flash Drive Compatible

The PM5 provides two means of storing your performance data: the internal memory in the monitor itself or with a USB flash drive. The USB flash drive stores your workout data and preferences, and makes your data portable. With our free Concept2 Utility software, you can upload data to your online logbook or transfer data to your Mac or PC.

Compatible with FAT and FAT32 USB formats only

Power Generation

The PM5 takes two D cell batteries. During your workout, the monitor draws power from the spinning flywheel to extend battery life.

Games

On those days when you need a little extra motivation or just want a break from your regular routine, check out the . They’re also great teaching tools for both kids and adults! Choose from the Fish Game, Darts, Target Training and Biathlon.



Racing

The accuracy of the Performance Monitor makes it ideal for racing and competition. With a PM5, you can compete against your teammates or workout rivals, whether they're in the same room or on another continent. The PM5 supports wired machine to machine racing.
